Display Controller IC/Interface IC for Automotive

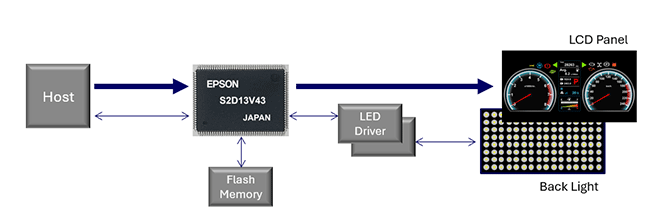

The S2D13V43 is a display controller IC designed for high-resolution HUDs and other in-vehicle displays. It corrects warping to match the curvature of automotive windshields and displays streaming image data from the host SoC. This product incorporates Local Dimming, which enhances image visibility while reducing power consumption. It also features pitch correction and comprehensive display safety features, supporting robust and reliable HUD system operation.

The S2D13V42 is a warping correction controller IC specific to Head Up Display. It supports high resolution (up to 1280 x 720) and features an internal Surface Correction Engine which fixes visual distortions caused by non-linear display surfaces. It is also able to simultaneously perform other image manipulations such as rotation and scaling and has a pitch correction function.
The S2D13V42 is qualified for automotive design including AEC-Q100/IATF16949 compliance and comprehensive safety features. The S2D13V42 can be easily inserted into existing system display architectures with minimal modifications required, making it an ideal solution for both existing and future designs.

The S2D13V40 is a warping correction controller IC specific to Head Up Display. It features an internal Surface Correction Engine which fixes visual distortions caused by non-linear display surfaces. It is also able to simultaneously perform other image manipulations such as rotation and scaling.
The S2D13V40 is qualified for automotive design including AEC-Q100/IATF16949 compliance and comprehensive safety features. The S2D13V40 can be easily inserted into existing system display architectures with minimal modifications required, making it an ideal solution for both existing and future designs.
