Epson's new 16-bit microcontroller features small size and low power consumption equivalent to an 8-bit microcontroller, even with the 16MB address space.
The S1C17 family of original 16-bit microcontrollers integrate a wide variety of interfaces, allowing connection with multiple sensors and a wealth of peripheral circuits such as an EPD driver,LCD controller and driver supporting low to medium-level resolutions.
The S1C17 family microcontroller has RISC architecture to achieve high-speed operation and low power consumption, making it ideal for mobile devices. The family includes a rich lineup of built-in Flash ROM products.
The high quality development environment and on-chip ICE function also contribute to shorten design turnaround time.

Product lineup

Document download

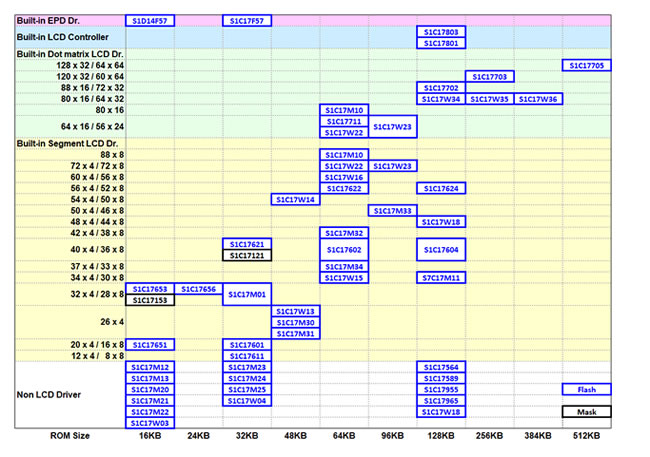

16-bit Microcontrollers Lineup

16-bit microcontrollers spec tables PDF

S1C17W00series

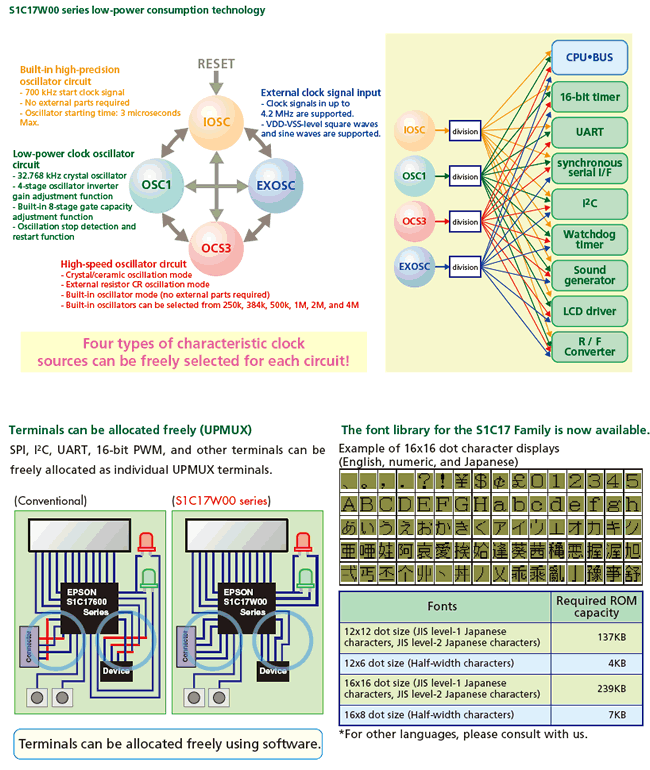

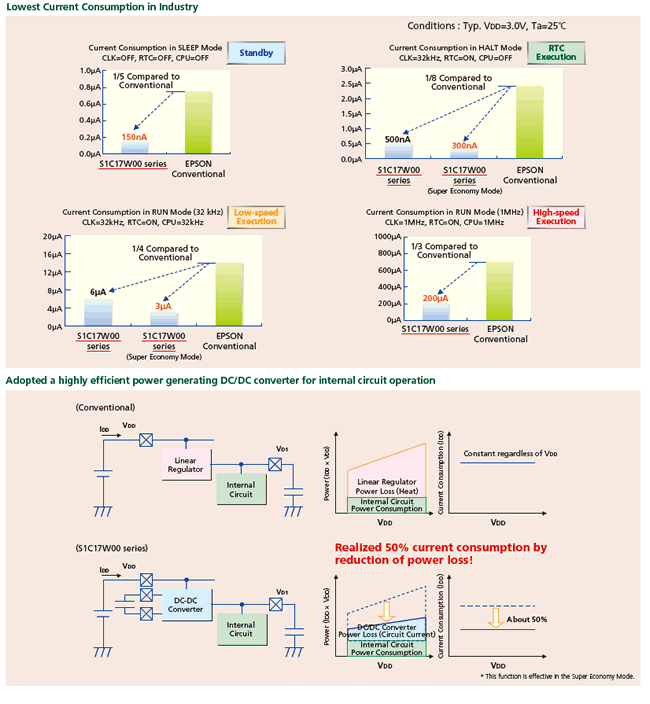

The S1C17W22/W23 is a 16-bit microcontroller that features low-voltage operation from 1.2 V even though Flash memory is included. The embedded high-efficiency DC-DC converter generates the constant-voltage to drive the IC with lower power consumption than 4-bit microcontrollers. It is suitable for battery-driven applications that require an LCD display and timers.

ST Products LCD Driver Clock frequency
(Max.)
Flash RAM Data SheetPDF
Data sheet
Manual PDF
Manual
Manual
Errata
MP S1C17W03 - 4.2MHz 16KB 2KB S1C17W03/04 Data Sheet
561KB
S1C17W03/04 Techinical Manual
9,802KB
S1C17W03/04 Errata
681KB
MP S1C17W04 - 4.2MHz 32KB 2KB
MP S1C17W13 26x4 4.2MHz 48KB 2KB S1C17W13 Data Sheet
649KB
S1C17W13 Techinical Manual
11,845KB
S1C17W13 Errata
983KB
MP S1C17W14 54×4
50×8
4.2MHz 48KB 4KB S1C17W14 Data Sheet
1,616KB
S1C17W14 Techinical Manual
10,932KB
S1C17W14/16 Errata
1,101KB
MP S1C17W15 34×4
30×8
4.2MHz 64KB 4KB S1C17W15 Data Sheet
807KB
S1C17W15 Techinical Manual
10,617KB
S1C17W15 Errata
1,065KB
24×4
20×8
MP S1C17W16 60×4
56 ×8
4.2MHz 64KB 8KB S1C17W16 Data Sheet
1,616KB
S1C17W16 Techinical Manual
10,932KB
S1C17W14/16 Errata
1,101KB
MP S1C17W18 48×4
44 ×8
4.2MHz 128KB 8KB S1C17W18 Data Sheet
660KB
S1C17W18 Techinical Manual
11,642KB
S1C17W18 Errata
1,436KB
MP S1C17W22 72×4/8
64×16
56×24
4.2MHz 64KB 4KB S1C17W22/23Data Sheet
710KB
S1C17W22/W23 Techinical Manual
11,721KB
S1C17W22/23 Errata
1,095KB
MP S1C17W23 72×4/8
64×16
56×24
4.2MHz 96KB 8KB
MP S1C17W34 80×16
64×32
4.2MHz 128KB 12KB S1C17W34/35/36Data Sheet
522KB
S1C17W34/35/36 Techinical Manual
11,397KB
S1C17W34/35/36 Errata
1,335KB
MP S1C17W35 80×16
64×32
4.2MHz 256KB 12KB
MP S1C17W36 80×16
64×32
4.2MHz 384KB 16KB
  • ST(Status) MP(Mass Production) UD(Under Development) NP(Non Promotion)
  • Please contact your Epson representative for products whose manuals/technical documents are not listed.

S1C17000/500 series

This is low power consumption microcontroller that integrates ROM, RAM, remote controller circuit, wide variety of I/F and timer function.

This features low power consumption and price just like 4-bit/8-bit microcontroller. It is suitable for portable device built-in sensor system.

ST Products LCD Driver Clock frequency
(Max.)
Flash RAM Data SheetPDF
Data sheet
Manual PDF
Manual
Manual
Errata
NP S1C17001 - 8.2MHz 32KB 2KB S1C17001 Data Sheet
107KB
S1C17001 Technical Manual
2,576KB
S1C17001 Errata
301KB
NP S1C17002 - 20MHz 128KB 8KB S1C17002 Data Sheet
165KB
S1C17002 Technical Manual
3,165KB
S1C17002 Errata
177KB
NP S1C17003 - 20MHz 64KB 4KB S1C17003 Data Sheet
161KB
S1C17003 Technical Manual
2,733KB
S1C17003 Errata
135KB
NP S1C17501 - 48MHz 96KB/128KB
*1
6KB S1C17501 Data Sheet
99KB
S1C17501 Technical Manual
3,746KB
S1C17501 Errata
379KB
NP S1C17554 - 24MHz 128KB 16KB S1C17554/564 Data Sheet
160KB
S1C17554/564 Technical Manual
3,888KB
S1C17554/564 Errata
417KB
NP S1C17555 - 12MHz 128KB 16KB S1C17555/565/955/965  Data Sheet
174KB
S1C17555/565/955/965 Technical Manual
4,869KB
-
NP S1C17557 - 16MHz 128KB 44KB - - -
MP S1C17564 - 24MHz 128KB 16KB S1C17554/564 Data Sheet
160KB
S1C17554/564 Technical Manual
3,888KB
S1C17554/564 Errata
417KB
NP S1C17565 - 24MHz 128KB 16KB S1C17555/565/955/965 Data Sheet
174KB
S1C17555/565/955/965 Technical Manual
4,869KB
-
MP S1C17589 - 16.8MHz 128KB 16KB S1C17589 Data Sheet
657KB
S1C17589 Technical Manual
8,975KB
S1C17589 Errata
473KB
  • *1: This product uses SuperFlash® technology licensed from Silicon Storage Technology, Inc.
    ST(Status) MP(Mass Production) UD(Under Development) NP(Non Promotion)

S1C17100/600 series

Integrate segment LCD driver, A/D converter and remoto controller circuit.

It is suitable for battery-driven portable device and healthcare appliance.

ST Products LCD Driver Clock frequency
(Max.)
Flash RAM Data SheetPDF
Data sheet
Manual PDF
Manaul
Manual
Errata
MP S1C17153 32x4 2MHz 16KB
(Mask)
2KB S1C17153 Data Sheet
129KB
S1C17153 Technical Manual
3,434KB
-
MP S1C17121 40x4
36x8
4.2MHz 32KB
(Mask)
2KB S1C17121 Data Sheet
143KB
S1C17121 Technical Manual
4,753KB
S1C17121 Errata
1,073KB
MP S1C17651 20x4 4.2MHz 16KB 2KB S1C17651 Data Sheet
140KB
S1C17651 Technical Manual
1,785KB
S1C17651 Errata
38KB
MP S1C17653 32x4 4.2MHz 16KB
2KB S1C17653 Data Sheet
476KB
S1C17653 Technical Manual
1,842KB
S1C17653 Errata
83KB
MP S1C17656 32x4 4MHz 24KB 2KB S1C17656 Data Sheet
400KB
S1C17656 Technical Manual
4,327KB
S1C17656 Errata
242KB
MP S1C17611 12x4
8x8
8.2MHz 32KB
*1
2KB S1C17611 Data Sheet
191KB
S1C17611 Technical Manual
1,213KB
S1C17611 Errata
392KB
MP S1C17601 20x4
16x8
8.2MHz 32KB
*1
2KB S1C17601 Data Sheet
144KB
S1C17601 Technical Manual
3,395KB
S1C17601 Errata
647KB
MP S1C17621 40x4
36x8
8.2MHz 32KB
*1
2KB S1C17624/604/622/602/621 Data Sheet
123KB
S1C17624/604/622/602/621 Technical Manual
3,650KB
S1C17621/602/622/604/624 Errata
388KB
MP S1C17602 40x4
36x8
8.2MHz 64KB
*1
4KB
MP S1C17622 56x4
52x8
8.2MHz 64KB
*1
4KB
MP S1C17604 56x4
52x8
8.2MHz 128KB
*1
8KB
MP S1C17624 40x4
36x8
8.2MHz 128KB
*1
8KB
  • *1: This product uses SuperFlash® technology licensed from Silicon Storage Technology, Inc.
    ST(Status) MP(Mass Production) UD(Under Development) NP(Non Promotion)

S1C17M00 series

This series is an application-specific type.
This is a 16-bit microcontroller with built-in flash memory, which realizes high-speed processing at low power consumption, and supports the power supply voltage from 1.8V to 5.5V.

ST Products LCD Driver Clock frequency
(Max.)
Flash RAM Data SheetPDF
Data sheet
Manual PDF
Manaul
Manual
Errata
MP S1C17M01 56x4
52x8
16.3MHz 32KB 4KB S1C17M01 Data Sheet
117KB
S1C17M01Technical Manual
7,377KB
S1C17M01 Errata
934KB
MP S1C17M10 80x16
64x32
16MHz 64KB 4KB S1C17M10 Data Sheet
372KB
S1C17M10Technical Manual
6,810KB
S1C17M10 Errata
866KB
MP S7C17M11 30x8
32x6
34x4
16.8MHz 126KB 8KB S7C17M11 Data Sheet
759KB
S7C17M11Technical Manual
7,713KB
S1C17M11 Errata
769KB
MP S1C17M12 - 16.8MHz 16KB 2KB S1C17M12 Data Sheet
926KB
S1C17M12Technical Manual
6,709KB
S1C17M12/13 Errata
66KB
MP S1C17M13 - 16.8MHz 16KB
2KB
UD S1C17M20
(SQFN4-24)
(SQFN5-32)
- 21MHz 16KB 2KB S1C17M2X Data Sheet
903KB
S1C17M20/21/22/23/24/25Technical Manual
7,672KB
-
UD S1C17M21
(TQFP12-32)
- 21MHz 16KB 2KB -
UD S1C17M22
(TQFP12-48)
- 21MHz 16KB 2KB -
UD S1C17M23
(SQFN4-24)
(SQFN5-32)
- 21MHz 32KB 2KB -
UD S1C17M24
(TQFP12-32)
- 21MHz 32KB 2KB -
UD S1C17M25
(TQFP12-48)
- 21MHz 32KB 2KB -
MP S1C17M30 22x8
26x4
(External voltage must be applied.)
16.8MHz 48KB 4KB S1C17M12 Data Sheet
1,042KB
S1C17M12Technical Manual
9,149KB
S1C17M30/31/32/33/34 Errata
513KB
MP S1C17M31 22x8
26x4
16.8MHz 48KB 4KB
MP S1C17M32 38x8
42x4
(External voltage must be applied.)
16.8MHz 64KB 4KB
MP S1C17M33 46x8
50x4
16.8MHz 96KB 4KB
MP S1C17M34 33x8
37x4
16.8MHz 64KB 4KB
  • ST(Status) MP(Mass Production) UD(Under Development) NP(Non Promotion)

S1C17700 series

The RISC microcontroller integrates Flash ROM, RAM, dot matrix LCD driver, remote controller circuit, wide variety of I/F and timer function.

This features low power consumption just like 4-bit/8-bit microcontroller. It is suitable for battery-driven portable device with display such as sports watch, remote controller.

Status Products LCD Driver Clock frequency
(Max.)
Flash RAM Data SheetPDF
Data sheet
Manual PDF
Manual
Manul Errata
MP S1C17711 64x16
56x24
8.2MHz 64KB
*1
4KB S1C17711 Data Sheet
113KB
S1C17711 Technical Manual
2,691KB
S1C17711 Errata
340KB
MP S1C17704
(S1C17701*2)
72x16
56x32
8.2MHz 64KB
*1
4KB S1C17704 Data Sheet
144KB
S1C17704 Technical Manual
2,724KB
S1C17704 Errata
493KB
S1C17701 Data Sheet
108KB
S1C17701 Technical Manual
2,743KB
S1C17701 Errata
489KB
MP S1C17702 88x16
72x32
8.2MHz 128KB
*1
12KB S1C17702 Data Sheet
145KB
S1C17702 Technical Manual
2,653KB
S1C17702 Errata
477KB
MP S1C17703 120x16/24/32
60x64
8.2MHz 256KB
*1
12KB S1C17705/703 Data Sheet
206KB
S1C17705/703 Technical Manual
14,438KB
S1C17703/705 Errata
147KB
MP S1C17705 128x16/24/32
64x64
8.2MHz 512KB
*1
12KB
NP S1C17706 160x16/24/32
64x64
8.2MHz 1MB
*1
12KB S1C17706 Data Sheet
163KB
S1C17706 Technical Manual
10,835KB
S1C17706 Errata
203KB
  • *1: This product uses SuperFlash® technology licensed from Silicon Storage Technology, Inc.
  • *2: Executes 1 instruction/1.5 clock
    ST(Status) MP(Mass Production) UD(Under Development) NP(Non Promotion)

S1C17800 series

The RISC microcontroller has realized as advanced processing as 32-bit microcontroller at Max.48MHz.

It is suitable for healthcare equipment, home appliance and portable device by integrated LCD controller, USB, A/D converter, wide variety of I/F such as SPI, I2S etc.

ST Products LCD
controller
Clock frequency
(Max.)
Flash*1 RAM Data SheetPDF
Data sheet
Manual PDF
Manual
Manual
Errata
MP S1C17801 STN:~4bpp 48MHz 128KB
*1
6KB S1C17801 Data Sheet
97KB
S1C17801 Technical Manual
4,738KB
S1C17801 Errata
649KB
MP S1C17803 STN:~4bpp 33MHz 128KB
*1
16KB S1C17803 Data Sheet
165KB
S1C17803 Technical Manual
8,527KB
S1C17803 Errata
190KB
  • *1: This product uses SuperFlash® technology licensed from Silicon Storage Technology, Inc.
    ST(Status) MP(Mass Production) UD(Under Development) NP(Non Promotion)

S1C17900 series

Integrate super low power DSP, A/D converter and sensor interface. It supports a small package, it is suitable for high-density implementation.

ST Products LCD Driver Clock frequency
(Max.)
Flash RAM Data SheetPDF
Data sheet
Manual PDF
Manual
Manual
Errata
MP S1C17955 - 24MHz 128KB 16KB
*3
S1C17555/565/955/965  Data Sheet
174KB
S1C17555/565/955/965 Technical Manual
4,869KB
-
MP S1C17965 - 24MHz 128KB 16KB
*3
  • *3: 12KB for DSP
    ST(Status) MP(Mass Production) UD(Under Development) NP(Non Promotion)

S1C17F00series & S1D14F00series

The S1C17F00series is microcontroller featuring EPD passive panel segment driver, - and temperature detection circuit. The S1D14F00series is low power consumption driver IC with expandability of segment display capacity. It is suitable for portable device with EPD such as smart card.

ST Products EPD driver Clock frequency
(Max.)
Memory Data SheetPDF
Data sheet
Manual PDF
Manual
Manual
Errata
Seg TP BP Flash RAM
MP S1C17F57 64 2 2 4.2MHz 32KB 2KB S1C17F57 Data Sheet
110KB
S1C17F57 Technical Manual
3,044KB
S1C17F57 Errata
83KB
MP S1D14F57 256 2 2 - 16KB - S1D14F57 Data Sheet
145KB
S1D14F57 Technical Manual
1,145KB
-
  • ST(Status) MP(Mass Production) UD(Under Development) NP(Non Promotion)

Application examples

Example of application using the S1C17803: Home appliance(Adding functions)

Example of application using the S1C17602: Healthcare product

Example of application using the S1C17702: Multifunctional remote controller

Example of application using the S1C17F57: OTP card

Example of application using the S1C17F57+S1D14F57: Electronic tags for logistics
