The bus switch IC from Epson, who produced excellent result in USB controller.This USB bus switch ICs supports USB 2.0 high-speed transmission by reduced switch pin capacitance. This product features the low power consumption and compact package.

Document download

USB bus switch ICs spec table PDF

Features

  • No external voltage level shifter is required thanks to the built-in level shifter
  • High voltage is allowed for input terminals (Recommeded maximum voltage: 5.5V)
  • Space-saving compact design packages

Main specifications

Status
Manual
Data sheet		 Products Input voltage range Operational power
consumption		 ON resistance Pin capacity Package
MP S1F77310M0A Technical Manual
516KB		 S1F77310M0A Data Sheet
185KB		 S1F77310M0A 3.0V to 3.6V 14µA (Max.) 5.3Ω (Typ.) 1.7pF (Typ.) PLP-8pin
MP S1F77330 Series Technical Manual
375KB		 S1F77330 Series Data Sheet
164KB		 S1F77330B0A 3.0V to 3.6V 14µA (Max.) 6.0Ω (Typ.) D-system: 2.7pF (Typ.)
D*-system: 1.45pF (Typ.)		 WCSP-10pin
MP - - S1F77330M0A 3.0V to 3.6V 14µA (Max.) 6.0Ω (Typ.) D-system: 2.7pF (Typ.)
D*-system: 1.45pF (Typ.)		 PLP-10pin

Note) D-system: DX, DY D*-system: D1X, D1Y, D2X, D2Y

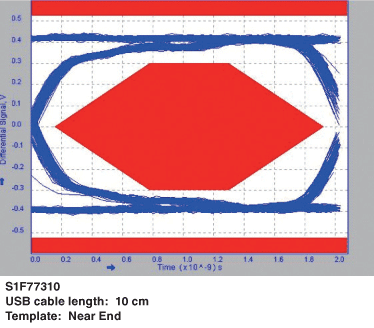

Characteristic examples of USB 2.0 Eye-Pattern

Block diagram
