What is Alpha Blending?

Alpha Blending

Alpha blending is a technique in image processing used to overlay two images. Specifically, it combines the color of each pixel based on its alpha value (transparency level), resulting in a composite image. The alpha value determines the degree of transparency, allowing for smooth transitions and layered visual effects.

What is Alpha Blending?

Alpha blending (also known as α blending) is the same concept as alpha blend. It refers to the process of combining pixel colors based on their alpha values (transparency levels). The term "alpha blending" is derived directly from English and is often written in katakana in Japanese as alpha blending.

This technique is commonly used in image processing to overlay images, allowing for smooth transitions and semi-transparent effects by calculating the weighted average of pixel colors.

How Alpha Blending Works

Alpha blending is a technique in computer graphics used to control the transparency of images. It allows images or objects to be displayed with varying levels of transparency, enabling them to be overlaid on a background or other images.

Alpha Value (α):
Each pixel contains not only color components—R (Red), G (Green), and B (Blue)—but also an alpha (α) value. The alpha value ranges from 0 to 1, where:
0 represents full transparency (completely invisible)
1 represents full opacity (completely visible)
By using the alpha value, the final color of a pixel is calculated as a weighted combination of the foreground and background colors, allowing for smooth blending effects.

By using alpha blending, images can be overlaid with the desired level of transparency. Additionally, by changing the alpha value over time, smooth transitions between images can be achieved-for example, during scene changes or fade-in/fade-out effects.

Alpha Blending Formula

For example, if the pixel color of the foreground image is P_s, the pixel color of the background image is P _m, and the alpha value of the foreground image is α, then the resulting pixel color P_o after blending is calculated as follows:
Po=Pm × (1-α) + Pp × α

By using alpha blending, images can be overlaid with the desired level of transparency. Additionally, by changing the alpha value over time, smooth transitions between images can be achieved-for example, during scene changes or fade-in/fade-out effects.

Alpha Blending in Epson LCD Controllers

What is an Epson LCD Controller?

Epson offers a range of LCD controllers designed to support various LCD panel resolutions. Notable models include:

• S1D13781 - supports resolutions up to WQVGA
• S1D13748 - supports resolutions up to WVGA
• S1D13513 - supports resolutions up to XGA

Each of these controllers is equipped with alpha blending functionality, enabling smooth image overlay and transparency effects directly within the display system.

Example Applications of LCD Controllers

LCD controllers are widely used in a variety of applications that require visual displays, including:

• Office Automation (OA) equipment
• Factory Automation (FA) systems
• Residential equipment (e.g., smart home devices, control panels)
• Measuring instruments
• Medical devices

These controllers enable efficient and flexible display control in systems where clear and reliable visual output is essential.

Details of Alpha Blending in Epson LCD Controllers

A representative Epson LCD controller equipped with alpha blending functionality is the S1D13781.

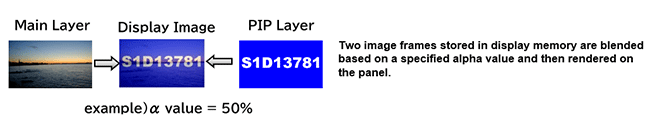

The S1D13781 supports two display layers:
The Main layer, which serves as the primary display screen.
The PIP (Picture-in-Picture) layer, which is overlaid on top of the Main layer.

By using the alpha blending function to combine these two layers, it is possible to display images with varying levels of transparency. This allows for smooth overlay effects, such as semi-transparent windows or fade-in/fade-out transitions, enhancing the visual presentation of the display system.
