What is a Clock Buffer?
In digital circuits, the clock signal serves as the reference that determines the timing of all operations. However, simply routing a clock signal directly throughout a large circuit does not guarantee ideal performance. Signal degradation can occur due to differences in trace length and connected loads, causing variations in arrival times at different destinations.
A clock buffer is used to solve these problems.

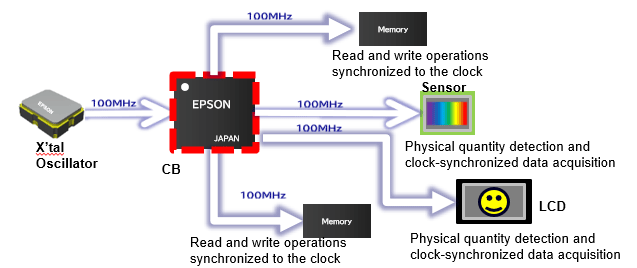

A clock buffer is a circuit that receives an input clock signal and distributes it reliably to multiple circuits with sufficient drive strength. Unlike a simple signal branch, it helps maintain signal integrity by restoring and conditioning the clock waveform, ensuring clean rising and falling edges at its outputs.
Two particularly important clock performance parameters are skew and jitter:
- Skew
Differences in clock arrival times between destinations - Jitter
Variations in the timing of clock edges over time
As skew and jitter increase, the available setup and hold time margins decrease, potentially leading to circuit malfunction. Clock buffers play a critical role in minimizing these timing variations.
In large-scale ICs and high-speed systems, clocks are often distributed through a hierarchical structure known as a clock tree, with buffers placed at various stages. This approach distributes the load and enables clock signals to reach individual blocks with closely matched timing.
Roles of a Clock Buffer
A clock signal is typically generated from a single source. If it is connected directly to a large number of flip-flops or logic circuits, the increased load can degrade signal edges and create larger variations in propagation delay.
As a result, issues such as clock skew and jitter can arise, reducing available timing margins and compromising system reliability.
To mitigate these problems, clock buffers perform the following functions:
- Provide sufficient drive capability to drive large capacitive loads
- Restore and reshape signal edges to compensate for waveform degradation
- Minimize delay differences among output branches through optimized design
In high-performance systems, requirements go beyond simple buffering. Low-skew architecture and low-jitter performance are essential, making clock buffers a common component of clock trees and dedicated clock distribution networks.
In this way, a clock buffer is not merely a signal amplification device but a critical timing-control element that supports synchronization accuracy throughout the system.
What Is a Clock Generator?
A clock generator is a device that generates and supplies the timing reference (clock signal) required for digital circuits such as CPUs, ICs, PCBs, and electronic systems. Since electronic devices depend on precise timing, the clock generator provides the timing foundation for system operation.
The primary role of a clock generator is frequency generation and distribution. A reference signal is typically produced by a crystal resonator or crystal oscillator and then processed by an internal PLL (Phase-Locked Loop) to multiply or divide the frequency as required by the system.
While standard oscillators typically offer one or two outputs, clock generators often support multiple outputs. Depending on the product, they may provide anywhere from several clock outputs to more than 30 independent outputs, enabling flexible clock distribution across a wide range of devices and applications.
For applications requiring reduced electromagnetic interference (EMI), clock generators with Spread Spectrum Clocking (SSC) functionality are often used.
see the clock generator article for more information
How to Use a Clock Buffer
Consider a server or networking system containing multiple devices such as a CPU, GPU, NVMe SSD, and network interface controller (NIC). For these devices to operate reliably at high speed, they must share a common timing reference.
This is where clock distribution using a clock buffer becomes essential.
In the example, a 100 MHz HCSL clock generated by an oscillator is fed into a clock buffer. The clock buffer receives this signal and distributes it to multiple destinations, including the CPU (SoC), GPU, and NVMe SSD.
The key point is that the signal is not simply split. The clock buffer is designed to ensure that timing is closely aligned among all outputs. By providing synchronized clock signals to multiple devices, clock buffers play an indispensable role in maintaining coordinated system operation.
How to Choose a Clock Buffer
A clock buffer is much more than a device for distributing clock signals. It is a critical component that can significantly affect system stability and performance. In modern electronic systems, where multiple high-performance devices operate simultaneously, clock quality directly impacts overall system quality.
Therefore, clock-buffer selection should be evaluated from multiple perspectives.
Select Based on Basic Specifications (Output Channels and Output Format)
The first consideration is whether the device meets the system's fundamental requirements. Number of output channels (output ports) should match the number of devices requiring a clock signal. When supplying clocks to multiple processors, interfaces, or storage devices, future scalability should also be considered.
Output format (signal standard) is another important factor. Common clock-output standards include:
- HCSL (widely used in high-speed interfaces)
- LVDS (low-noise differential signaling)
- LVPECL (high-speed, high-amplitude differential signaling)
- LVCMOS (typically used in lower-speed applications)
Since compatibility with the receiving device is essential, interface requirements should be confirmed in advance.
Select Based on Timing Accuracy (Jitter and Skew)
Timing performance is one of the most important factors determining clock-buffer quality.
Jitter represents timing fluctuations of the clock signal. Higher jitter levels can contribute to communication errors and unstable operation. Low-jitter performance is especially critical in high-speed interface applications.
Attention should also be paid to additive jitter, which is the amount of jitter introduced by the clock buffer itself. Skew refers to timing differences between multiple outputs. Excessive skew can disrupt synchronization among devices. For systems in which multiple components must operate together, selecting a clock buffer with low output-to-output skew is essential.
Select Based on Signal Quality and Functional Requirements
Depending on the application, additional features may also influence the selection process.
For example, SSC (Spread Spectrum Clocking) support can be highly effective for EMI reduction. When working with differential clock signals, the following electrical characteristics should also be evaluated:
- Output voltage swing
- Rise and fall times
- Compatibility with the required termination scheme
Select Based on Implementation and System Design Considerations
Clock-buffer selection must be considered not only from the device specification standpoint but also in relation to PCB implementation and overall system design. Power-supply noise can increase jitter, making power-supply noise rejection (PSNR) and proper decoupling design important considerations. In addition, PCB trace lengths and differential-pair routing directly affect skew and signal integrity. Propagation delay and delay variation also impact clock-tree design. In multi-stage clock-distribution architectures, overall timing planning becomes especially important. As system speeds continue to increase, requirements for clock quality become more stringent. Consequently, selecting the right clock buffer has become a key factor in achieving high-quality system design.
