Hardware Development Tool

<Recommended Hardware Development Tool>

Category Product Link Comment
PC
PC (Windows 7/8.1/10)

-

Please refer the document of your integrated development environment for detail.



Debug Probe I-jet(by IAR Systems)
I-jet(by IAR Systems)
IAR Systems Please prepare either one.
Debug Probe

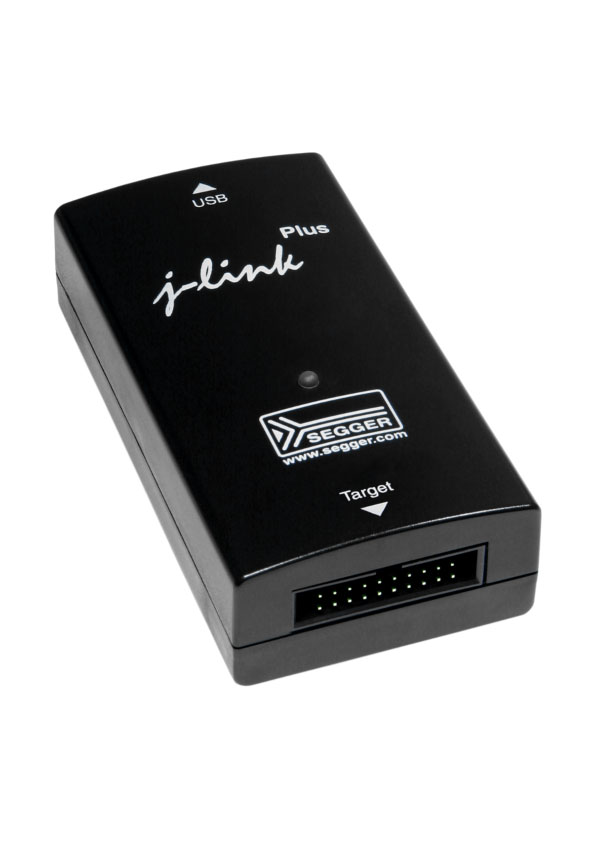

J-Link(by SEGGER)
J-Link(by SEGGER)
SEGGER

<Debug Probe Correspondence Table>

  I-jet J-Link
SEGGER Embedded Studio
- Available
IAR Embedded Workbench for ARM
Available Available
MDK-ARM - Available

<Optional Tool>

Category Product Part number Hardware
Manual
Errata Comment
Bridge Board Ver.2
Bridge Board
Bridge Board
S5U1C31001L2 rev1.0
PDF
2017/9/11

-

Connector figure transformation, Generate the power for FLASH



Evaluation Board SVT31D01
SVT31D01
S5U1C31D01T1 rev1.2
PDF
2017/9/11
- Evaluation board for S1C31D01,
Color Memory LCD,
Bridge Board
Evaluation Board
SVT31W74
SVT31W74
S5U1C31W74T1 rev1.1
PDF
2017/9/11
- Evaluation board for S1C31W74,
Dot matrix LCD, Ir-LED, USB connector, Bridge Board

*Hardware Manual contains Schematic and Bomlist.
