8bit (Non Promotion)

Based on the S1C88000, Epson's powerful 8-bit core CPU, the S1C88 family lineup integrates a wide choice of ROM and RAM sizes, LCD drivers, serial ports and other high-performance peripheral circuits into a single chip design. In addition, all devices contain the power-saving, low-voltage technology Epson devices are known for.

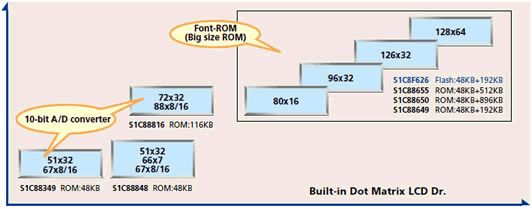

Product lineup

S1C88300series
Easy connection to ROM, RAM, and the peripheral . Suitable to portable equipment that needs low power consumption

S1C88600series
Font ROM included. Possible to display Kanji character without external ROM

S1C88800series
Type that deletes external bus from S1C88300

Document download

8-bit Microcontrollers Lineup

8-bit microcontrollers spec table PDF

S1C88300series

S1C88300 series microcontrollers are equipped with ROM, RAM, LCD driver, serial I/Os,and timers . Easy connection to external ROM, RAM, peripherals and LCD drivers through bus I/O. Expecially suitable for portable equipments seeking for low power consumption.

Spec table PDF

Status Product LCD Driver seg x com Supply voltage range/
operation mode(V)
Clock frequency/
operation mode Hz(Typ.)
ROM
x8-bit
RAM
x8-bit

Data sheet

Manual
Manual Errata
NP S1C88349 51x32/
67x8/16/
1.8 to 3.5/Low powers,
2.4 to 5.5/Normal,
3.5 to 5.5/High speed
32KHz/Low powers,
4.2M/Normal,
8.2M/High speed
48K 2K S1C88349 Data Sheet
111KB
S1C88349 Technical Manual
1,505KB
S1C88349 Errata
7KB

S1C88600series

This series of microcontrollers contains ROM, RAM, LCD driver and various timer functions.
Thanks to internal font ROM, KANJI characters can be displayed easily without an external ROM.

Spec table PDF

Status Product LCD Driver seg x com Supply voltage range/
operation mode(V)
Clock frequency/
operation mode Hz(Typ.)
ROM
x8-bit
RAM
x8-bit

Data sheet

Manual
Manual Errata
NP S1C88649 80x8/16 1.8 to 3.6 32k/4.2M 48K+192K 8K S1C88649 Data Sheet
221KB
S1C88649 Technical Manual
1,272KB
S1C88649 Errata
25KB
NP S1C88650 126x8/
16/32
32k/8.2M 48K+896K S1C88650 Data Sheet
60KB
S1C88650 Technical Manual
1,337KB
S1C88650 Errata
17KB
NP S1C88655 128x64 48K+512K S1C88655 Data Sheet
82KB
S1C88655 Technical Manual
1,703KB
S1C88655 Errata
51KB
NP S1C8F626 92x32 32K/8.2M 48K+192K
(Flash)*8
S1C8F626 Data Sheet
89KB
S1C8F626 Technical Manual
1,802KB
-

*8:This product uses SuperFlash®technology licensed from Silicon Storage Technology,Inc.

S1C88800series

S1C88800 Series microcontrollers are equipped with ROM, RAM, dot matrix LCD Driver, serial I/O , timers and analog comparator. Products removing external bus from the S1C88300.

Spec table PDF

Status Product LCD Driver seg x com Supply voltage range/
operation mode(V)
Clock frequency/
operation mode Hz(Typ.)
ROM
x8-bit
RAM
x8-bit

Data sheet

Manual
Manual Errata
NP S1C88848 51x32/
66x17/
67x8/16
1.8 to 5.5 32k/8.2M 48K 1.5K S1C88848 Data Sheet
64KB
S1C88848 Technical Manual
1,312KB
-
NP S1C88816 72x32/
88x8/16
1.8 to 3.5/Low powers,
2.4 to 5.5
/Normal, 3.5 to 5.5
/High speed
32k/Low powers, 4.2M
/Normal, 8.2M/High speed
116K 8K S1C88816 Data Sheet
295KB
S1C88816 Technical Manual
1,425KB
S1C88816 Errata
7KB

Please contact your Epson representative for products whose manuals/technical documents are not listed.
